Gravity Pallet Racking
——

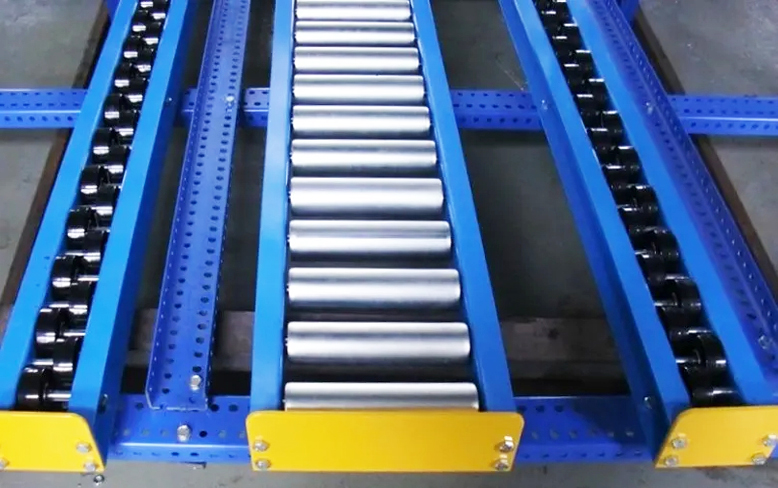

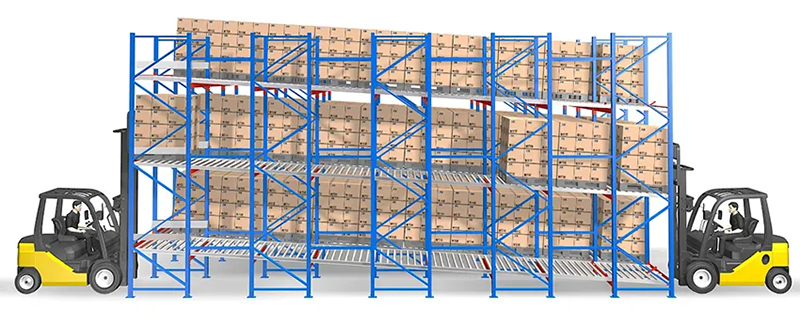

Gravity racking, also known as self-gravity racking or roller racking, belongs to a kind of heavy-duty racking, evolved from pallet racking. It mainly consists of columns, beams and roller track (or bottom wheel pallet), the track is a certain slope (usually 3 °~ 5 °) tilt mounted on the beams, the formation of a certain slope of the chute. Each chute can store a number of goods, storage, goods by forklift and other handling equipment into the high end, under the action of gravity, the goods along the chute automatically to the low end of the slide, until the end of the warehouse, to achieve the first-in-first-out storage mode. This kind of shelf is especially suitable for the storage of few varieties and large quantities of the same kind of goods, and the space utilization rate is very high.
Gravity racking · Warehouse Storage Rack · Made In China
Features & Advantages
—
High-density storage: the automatic flow of goods reduces the number of aisles and improves the utilization of warehouse space.
First-in-first-out principle: automatic flow according to the storage time successively is conducive to maintaining the freshness of the goods and reducing the inventory backlog.

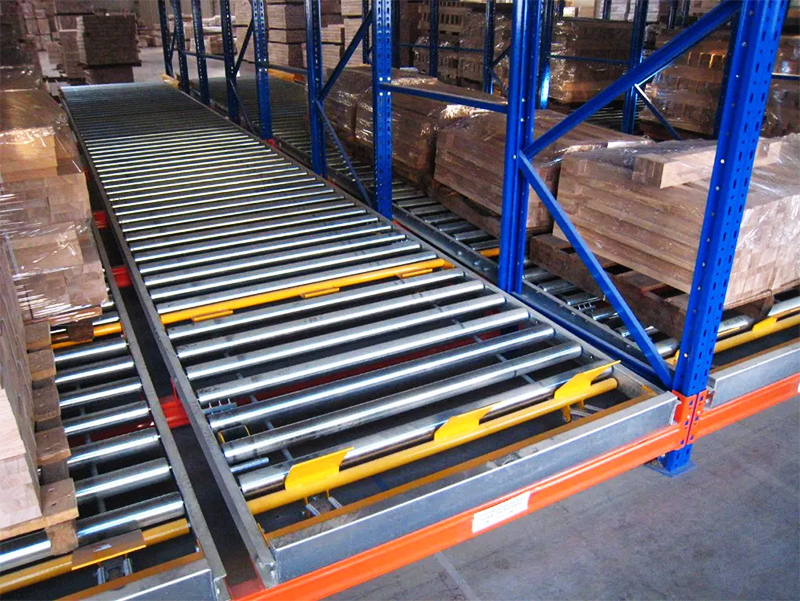

Efficient flow: automatic sliding on the chute reduces the number of manual handling and forklift use, improving the flow speed and access efficiency.
Eco-friendly and energy saving: the use of no powered operating form needs no additional energy consumption, and has low noise.
Safety and reliability: less manual handling, reasonable structural design, strong load-bearing capacity, and dampers and buffer devices on the chute.
High flexibility: depth and number of layers as well as the slope of the chute can be customized.
Low space cost: high density storage reduces warehouse rent and operation cost.
Low labour cost: less use of manual handling and forklift reduces labour cost.
Easy to manage: with the principle of first-in-first-out storage, it is easy to manage and adjust inventory.
Gravity racking · Warehouse Storage Rack · Made In China
Column Profiles
—
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam Profiles:
| Loading (kg) Specification (mm) | The Length of Box Beam (mm) |
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | | | | |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | | |
| 100 x 50 1.5 | | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | | |
| 110 x 50 x 1.5 | | | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |
| 120 x 50 x 1.5 | | | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |
| 140 x 50 x 1.5 | | | | 3868 | 3330 | 2720 | 2370 | 2020 | |
| 160 x 50 x 1.5 | | | | | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | | | | | | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | | | | | | 4130 | 4170 | 3320 | 2840 |
| Loading (kg) Specification (mm) | The Length of P Box Beam (mm) |
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | | |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
| 120 x 50 x 1.5 | | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505
|
Gravity racking · Warehouse Storage Rack · Made In China

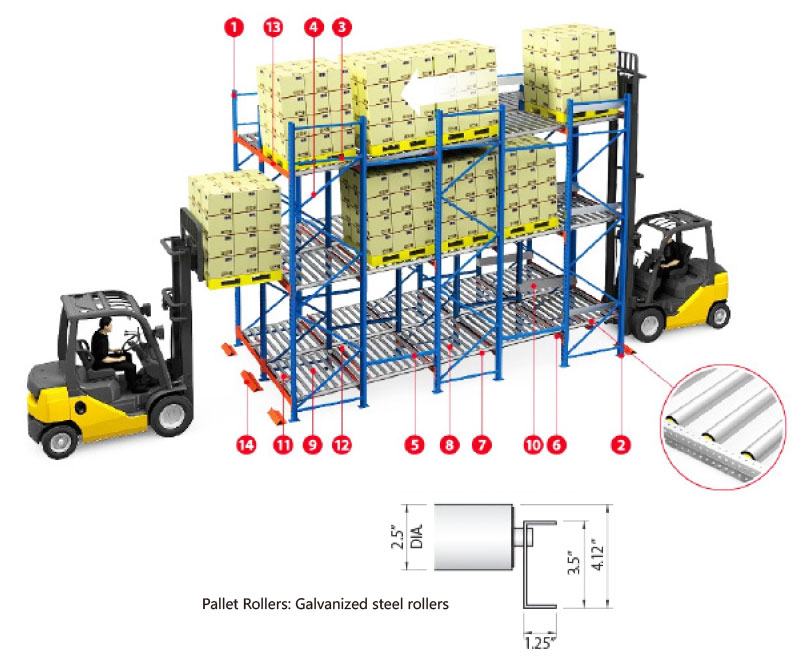

Structural Principles
—
1.Column 2.Foot Plate 3.Horizontal Bracing 4.Diagonal Bracing 5.Row Spacer 6.Supported Beam 7.Flow Rails 8.Rollers 9.Brake Rollers 10.Entry Guide 11.Safety Separator 12.Separator End Stop 13.End Stop 14.Forklift Stopper Plate
Gravity racking · Warehouse Storage Rack · Made In China

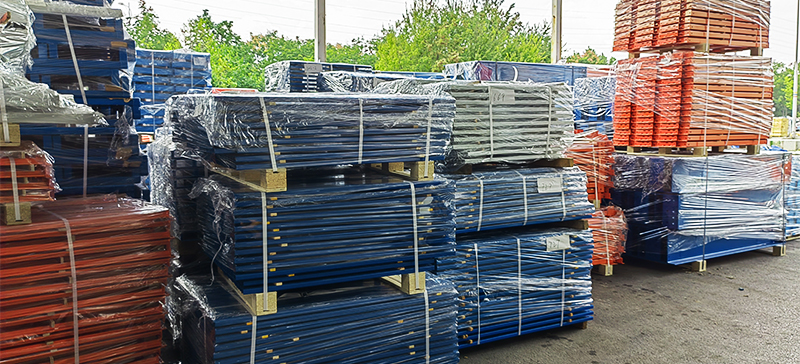

Packing
—
Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack
Gravity racking · Warehouse Storage Rack · Made In China

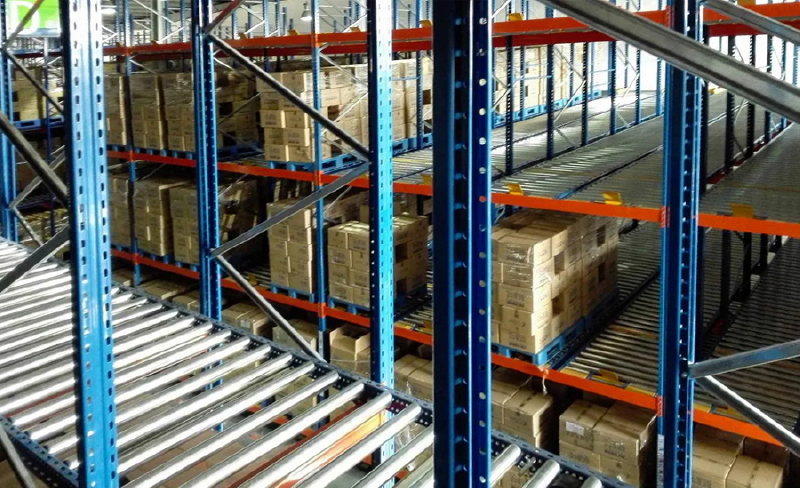

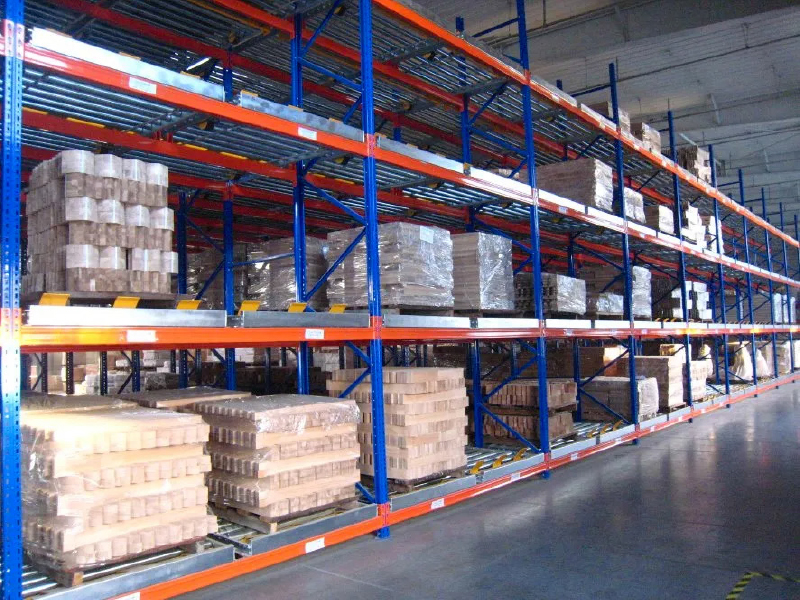

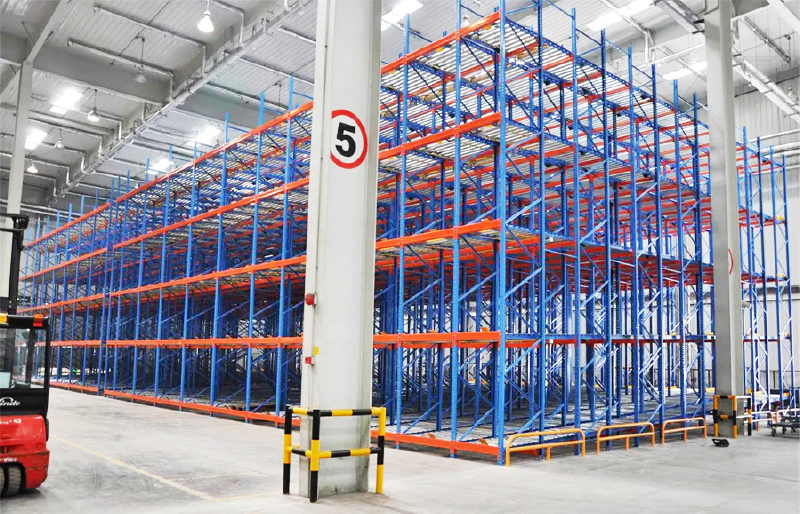

CASE
—
Gravity racking · Warehouse Storage Rack · Made In China
Gravity racking · Warehouse Storage Rack · Made In China
Gravity racking · Warehouse Storage Rack · Made In China
Gravity racking · Warehouse Storage Rack · Made In China
Gravity racking · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
